Key Product Features

What sets us apart from our competitors is the wide range of product features that only we can guarantee. The following are some of the factors that set our products apart:

We manufacture Manhole steps as per the European Standard- Steps for underground man entry chambers i.e., EN13101:2002

Plastic encapsulation for protection from all types of corrosion.
Superior resistance exceeding international standards.
Spark proof and polymer covered.
High impact resistance.
Extremely easy to install and cost-effective.
No sharp edges or corners and anti-slip surfaces.
The steps conform to all quality parameters. Test Certificate according to Applicable European Standard EN13101:2002
Extra-wide with a step width of 330mm and a hand bar of width 200mm.
Our Manhole Steps and Hand Bars extend up to a depth of 70mm.

Manhole Steps

Specification (All are in mm)

A - SHOULDER HEIGHT
B - DOWEL DISTANCE
C - LEG LENGTH
D - GRIP AREA

Installation Steps

Drill 2 holes of 25mm with a masonry drill bit. The holes should be kept in parallel (330mm distance) and 70mm deep.

Insert the washers on either ends of the step.

Drive the step into the holes evenly with a sledgehammer. Do not hit the step in the centre.

The step must be at a 15cm distance from the wall/surface.

Use a mercury scale to check the angles of the step. And move the washers to place.

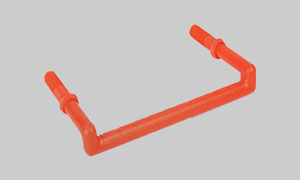

ST SS 014

Stainless Steel Step

(Dia) Core Material = 16
Plastic Encapsulation = more than 2.5 mm at any point
A = 50 | B = 330 | C = 225 | D = 70
Weight (in kg) = 1.35

ST AL 016

Aluminium Step

(Dia) Core Material = 16
Plastic Encapsulation = more than 2.5 mm at any point
A = 50 | B = 330 | C = 225 | D = 70
Weight (in kg) = 0.63

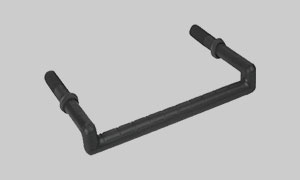

ST GS 018

Steel Step With Zinc Coating

(Dia) Core Material = 16
Plastic Encapsulation = more than 2.5 mm at any point
A = 50 | B = 330 | C = 225 | D = 70
Weight (in kg) = 1.35

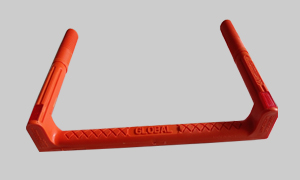

ST GS 032

STEEL STEP WITH ZINC COATING WITH REFLECTORS

(Dia) Core Material = 16
Plastic Encapsulation = more than 2.5 mm at any point
A=60 | B = 330 | C = 220-225 | D = 70
Weight (in kg) = 1.43

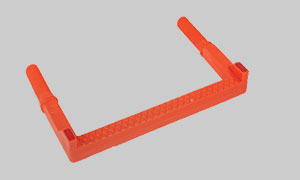

ST SS 020

Stainless Steel Step With Reflectors

(Dia) Core Material = 16
Plastic Encapsulation = more than 2.5 mm at any point
A = NA | B = 330 | C = 225 | D = 85
Weight (in kg) = 1.40

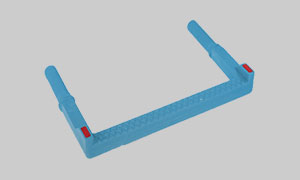

ST AL 021

Aluminium Step With Reflectors

(Dia) Core Material = 16
Plastic Encapsulation = more than 2.5 mm at any point
A = NA | B = 330 | C = 225 | D = 85
Weight (in kg) = 0.670

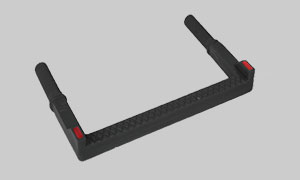

ST GS 022

Steel Step With Zinc Coating With Reflectors

(Dia) Core Material = 16
Plastic Encapsulation = more than 2.5 mm at any point
A = NA | B = 330 | C = 225 | D = 85
Weight (in kg) = 1.40

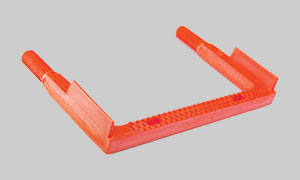

ST SS 029

Stainless Steel Step With Reflectors (B) Type

(Dia) Core Material = 16
Plastic Encapsulation = more than 2.5 mm at any point
A = NA | B = 330 | C = 225 | D = 85
Weight (in kg) = 1.470

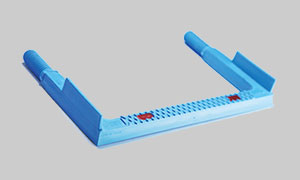

ST GS 030

Steel Step With Zinc Coating With Reflectors (B) Type

(Dia) Core Material = 16
Plastic Encapsulation = more than 2.5 mm at any point
A = NA | B = 330 | C = 225 | D = 85
Weight (in kg) = 1.470

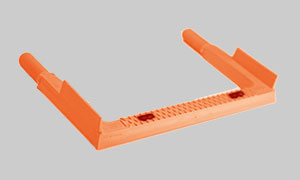

ST AL 031

Aluminium Step With Reflectors (B) Type

(Dia) Core Material = 16
Plastic Encapsulation = more than 2.5 mm at any point
A = NA | B = 330 | C = 225 | D = 85
Weight (in kg) = 0.710

(Dia) Core Material = 12 Plastic Encapsulation = more than 2.5 mm at any point…

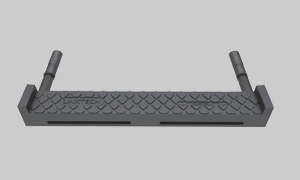

Pipe and Cable Holding Rungs

(Dia) Core Material = 12
Plastic Encapsulation = more than 2.5 mm at any point
A=NA | B = 330 | C = 160-165 | D = 80
Weight (in kg) = 0.930

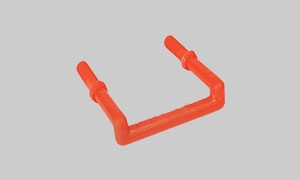

HB SS 015

Stainless Steel Handbar

(Dia) Core Material = 16
Plastic Encapsulation = more than 2.5 mm at any point
A = 50 | B = 200 | C = 230 | D = 70
Weight (in kg) = 1.150

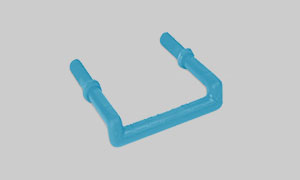

HB AL 017

Aluminium Handbar

(Dia) Core Material = 16
Plastic Encapsulation = more than 2.5 mm at any point
A = 50 | B = 200 | C = 230 | D = 70
Weight (in kg) = 0.520

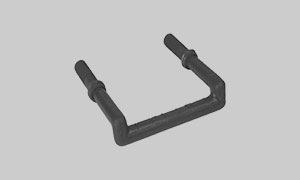

HB GS 019

Steel Handbar with Zinc Coating

(Dia) Core Material = 16
Plastic Encapsulation = more than 2.5 mm at any point
A = 50 | B = 200 | C = 230 | D = 70
Weight (in kg) = 1.150

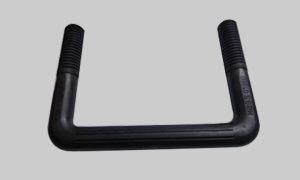

HB SS 015B/HB GS 019B

Steel Handbar with Zinc Coating

- (Dia) Core Material = 16
- Plastic Encapsulation = more than 2.5 mm at any point
- A=NA | B = 200 | C =170 | D = 75
- Weight (in kg) = .850

(Dia) Core Material = 12 Plastic Encapsulation = more than 2.5 mm at any point…

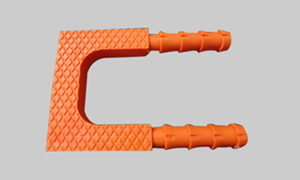

MS Handbar

(Dia) Core Material = 12
Plastic Encapsulation = more than 2.5 mm at any point
A=NA | B = 105 | C =170-175 | D = 80
Weight (in kg) = .480

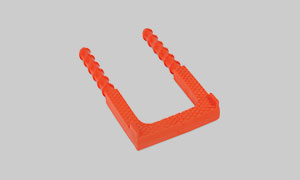

ST MS 027

Steel Step

(Dia) Core Material = 12
Plastic Encapsulation = more than 2.5 mm at any point
A = NA | B = 145 | C = 275 -280 | D = 145
Weight (in kg) = 0.800

ST GS 028

Steel Step With Zinc Coating

(Dia) Core Material = 12
Plastic Encapsulation = more than 2.5 mm at any point
A = NA | B = 145 | C = C = 275 -280 | D = 145
Weight (in kg) = 0.800

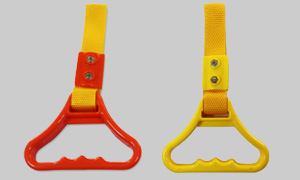

TYPE I

Hand-Grip-Type-I

Plastic Material : Poly Propylene Co Polymer(PPCP)
Bolt : Zinc plated Bolt & Nut – 15 mm
Rope material : Nylon
Length = 120mm | Width = 25mm | Height = 145mm | Weight = 85gm
Color : Orange, Yellow, Blue

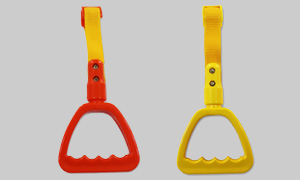

TYPE II

Hand-Grip-Type-II

Plastic Material : Poly Propylene Co Polymer(PPCP)
Rope material : Nylon
Bolt : Zinc plated Bolt & Nut – 20mm
Length = 120mm | Width = 30mm | Height = 170mm | Weight = 140gm
Color : Orange, Yellow, Blue
